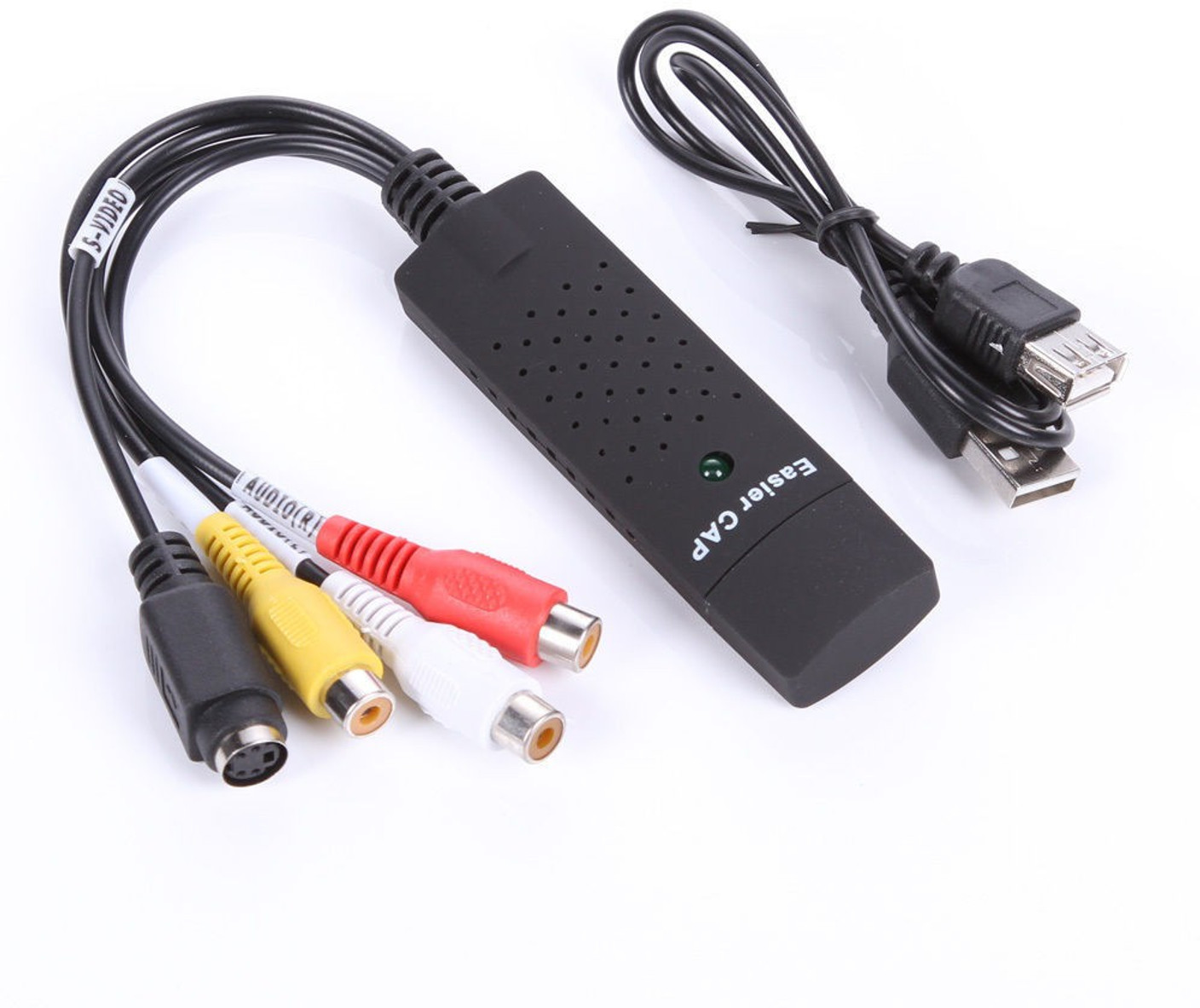

No audio when using Easy VHS to DVD products Symptom: When I try to capture video and audio from my VCR to my computer using Easy VHS to DVD products, I am not getting any audio. I cannot hear the audio from the VHS tape on my computer, either when previewing or capturing. Even when I play back the recorded capture, there is no audio. To start the VHS to DVD application, and enjoy your digital life by use our products. Note: For some reason, the contents of the CD may be lost or broken, if this happens, please ask us for drivers and software, Package 1 x Easycap USB 2.0 Audio TV Video VHS to DVD PC HDD Converter Adapter Capture Card 1 x CD Capture driver 1 x USB Cable. I have Roxio Creator 2011 & EasyCap USB 2.0 Video Adapter with Audio, using Windows 7. If I wanted to copy VHS to DVD, do I have everything I need, or should I purchase Roxio Easy VHS to DVD?

• Vhs To Dvd Conversion Service
• Easycap Vhs To Dvd Converter Free Download

I ordered EasyCap, but it does not work on windows 10. I found driver for windows 10 online, but it didn't work. Someone knows how could I solve this problem? The device is recognized as an audio device also after I installed the driver.Thank you very much.

Gennaro ArguzziGennaro Arguzzi

5 Answers

EasyCAP DC60 Somagic 1c88:0007 / 1c88:003c

There are many different versions of hardware sold under the name of 'EasyCAP'. Some do not store the required firmware in EEPROM but expect the driver to feed the firmware into the USB hardware when inserted. The Somagic 1c88:0007 is one such device (there may be others). Once the firmware is loaded, the device ID changes to 1c88:003c.

The lack of firmware is why “VLC 3.0.4 Vetinari” can work with some EasyCAP hardware (those with built-in firmware) but not others. VLC > Open Media > Capture Device tab > Capture mode only lists DirectShow, “TV - digital”, and Desktop. There is no “USB cam”.

Windows 10 1803's Device Manager shows it under Other devices > Unknown device > Details tab > Device instance path> Value = USBVID_1C88&PID_0007SMBL007. Events tab will list entries such as:Device not migratedDevice installed (smiusbgrabber3f.inf_..Info:Driver Management concluded the process to install driver smiusbgrabber3f.inf_amd64_62fdac16904230b7 for Device Instance ID USBVID_1C88&PID_0007SMBL007 with the following status: 0xE0000234.

The Somagic device driver is installed in C:WindowsSystem32DriverStoreFileRepositorysmiusbgrabber3f.inf_amd64_62fdac16904230b7SmiUsbGrabber3F.sys. Right click the .sys file > Properties. You will note there is no “Digital Signatures” tab. That means it is not “signed” which is required for Windows 10 kernel drivers. Compare this with C:WindowsSystem32driversstorahci.sys which is signed.

You can search to disable Driver Signature Enforcement in Windows 10, but it will make your system less secure / more prone to malware. I’m not even sure if the driver will even work in Windows 10 with Driver Signature Enforcement disabled. It is only marked with Win7-64 on the CD label.

Two places point to the same Microsoft signed driver:

1. • https://www.driverscape.com/download/sm-usb-007
     Driver Version:
     1.0.8.28 Release Date: 2011-01-26
     File Size: 546.04K
     Supported OS: Windows 10 64 bit, Windows 8.1 64bit, Windows 7 64bit
     Download https://www.driverscape.com/files/share/3f52a8986e882143628ad42e0a84c0a1.zip

2. TonestarDeluxe 4/17/2017 9:58:25 PM

   • Uninstall the unknown device in device manager
   • Create a Windows restore point
   • Go to http://www.driverscape.com/download/sm-usb-007 and scroll down to the second last driver. Driver details should be:
     Driver Version: 1.0.8.28
     Release Date: 2011-01-26
     File Size: 546.04K
     Supported OS: Windows 10 64 bit, Windows 8.1 64bit, Windows 7 64bit
   • Download the zip file and extract to a folder (virus scan first of course!).
   • After the extraction, right click on the SmiUsbGrabber3C.inf file and select install.Your USB Device should be installed and recognised now. You may need to reboot if need be.

Windows 10 1809 (as of 2018-11-18) did not complain about the digital signature, but it complained about the Widows 95 era *.INF file and not being able to migrate the driver. Perhaps an older version of Windows 10 may work (until Microsoft pushes it to update).

Ubuntu 18.04.1 information about the EasyCAP device I bought via eBay:

$ sudo lsusb -d 1c88:0007 -vBus 003 Device 011: ID 1c88:0007 Somagic, Inc. SMI Grabber (EasyCAP DC60+ clone) (no firmware) [SMI-2021CBE]Device Descriptor: bLength 18 bDescriptorType 1 bcdUSB 2.00 bDeviceClass 0 (Defined at Interface level) bDeviceSubClass 0 bDeviceProtocol 0 bMaxPacketSize0 64 idVendor 0x1c88 Somagic, Inc. idProduct 0x0007 SMI Grabber (EasyCAP DC60+ clone) (no firmware) [SMI-2021CBE] bcdDevice 1.00 iManufacturer 1 Somagic, Inc. iProduct 2 SM-USB 007 iSerial 3 SMBL007 bNumConfigurations 1 Configuration Descriptor: bLength 9 bDescriptorType 2 wTotalLength 18 bNumInterfaces 1 bConfigurationValue 1 iConfiguration 0 bmAttributes 0x80 (Bus Powered) MaxPower 200mA Interface Descriptor: bLength 9 bDescriptorType 4 bInterfaceNumber 0 bAlternateSetting 0 bNumEndpoints 0 bInterfaceClass 255 Vendor Specific Class bInterfaceSubClass 255 Vendor Specific Subclass bInterfaceProtocol 255 Vendor Specific Protocol iInterface 0Device Qualifier (for other device speed): bLength 10 bDescriptorType 6 bcdUSB 2.00 bDeviceClass 0 (Defined at Interface level) bDeviceSubClass 0 bDeviceProtocol 0 bMaxPacketSize0 64 bNumConfigurations 1Device Status: 0x0000 (Bus Powered)

Unfortunately, Linux support for this device is complicated to set up:

As Phil's answer mentions, EasyCap does not need a driver if used with the free VLC player. Let me elaborate.

• Once you open VLC, you click on the media tab.
• Click open capture device.
• Select USB cam and USB mic.
• Then hit play

fixer1234

I have sympathy with this problem and it took me ages to resolve. Even tried the remove / you name it solutions but narra.

There is a driver available on the following website:https://visser.io/2015/06/easycap-drivers-for-windows-8-1/

Vhs To Dvd Conversion Service

The driver file at the bottom to download is:EasyCap_W7_W10_x64.zip

Problem solved.

If it works for you, please let me know?

It's not the drivers I finally figured it out. It's the usb cable that comes with it. The usb cable that attaches to it and then you plug the other end to the computer .it is thin and cheaply made. Get your self a top of the line usb cable and you are good to go.I had one lying around my home and tried it and it works great. I thought it was the driver for a long time until it hit me try a quality usb cable. That is it just purchase a quality top of the line usb cable and your good to go. Post if it works for you. Take care

EasyCap does not need a driver if used with free VLC Media Player https://www.videolan.org/vlc/index.html.
